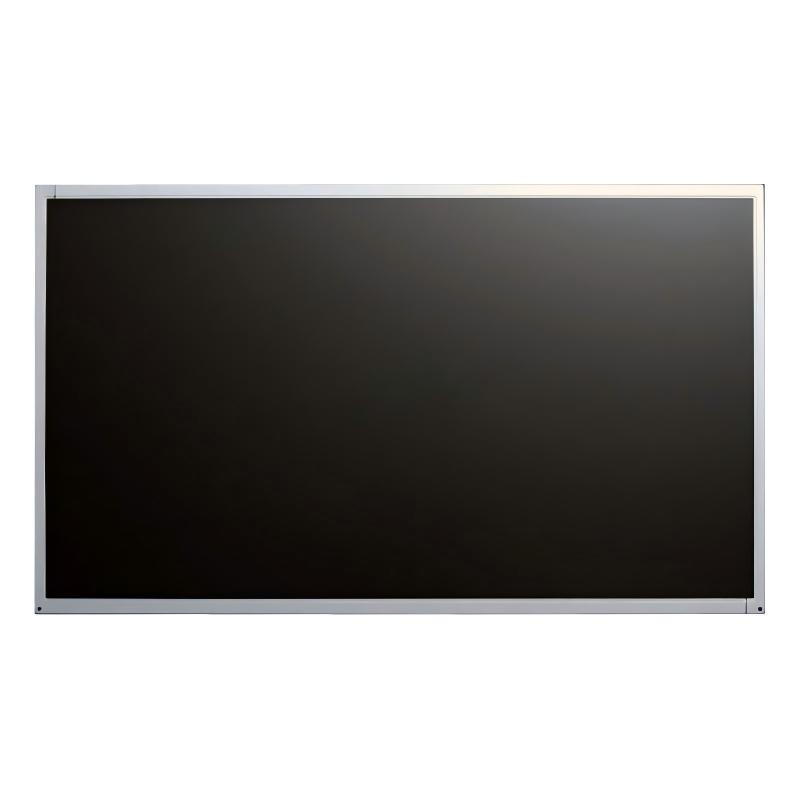

M215HTN01.1 LCD Panel
In the intricate ecosystem of electronic devices, the display panel serves as the critical interface between user and machine. Among the myriad of components powering our monitors, industrial equipment, and specialized applications, the M215HTN01.1 LCD Panel stands out as a notable and widely implemented model. This panel, a 21.5-inch diagonal screen with specific performance characteristics, has found its niche across various professional and commercial sectors. Understanding its specifications, strengths, and ideal use cases is essential for engineers, procurement specialists, and tech enthusiasts alike.
This article delves into a comprehensive analysis of the M215HTN01.1 LCD panel. We will move beyond basic datasheet parameters to explore the technology behind its performance, its practical applications, and the key considerations for integration and maintenance. Our goal is to provide a deep, actionable resource that illuminates why this particular panel model has been a reliable workhorse in its class and what factors one must weigh when utilizing it in a project or as a replacement component.
Technical Specifications and Core Architecture
The M215HTN01.1 is fundamentally a 21.5-inch Twisted Nematic (TN) LCD panel with a Full HD (1920 x 1080 pixels) resolution. This combination offers a balance between screen real estate and pixel density suitable for general computing tasks. Its native aspect ratio is 16:9, the contemporary standard for widescreen content. The panel employs a standard RGB stripe pixel arrangement and typically features a matte surface treatment to mitigate glare.
At its core, the TN technology dictates several key performance traits. TN panels are known for their relatively fast response times, often in the range of 5ms (gray-to-gray) for this model, which helps reduce motion blur. The architecture also allows for high brightness levels, commonly around 250 nits or more, ensuring visibility in various lighting conditions. However, the trade-offs inherent in TN technology, such as more limited viewing angles and color reproduction compared to IPS or VA panels, are defining characteristics of the M215HTN01.1's visual output. Understanding this foundational technology is crucial for setting accurate performance expectations.
Performance Characteristics: Strengths and Limitations
Evaluating the M215HTN01.1 requires a nuanced look at its performance profile. Its primary strengths lie in areas where TN panels traditionally excel. The fast pixel response time makes it a competent choice for applications involving moderate motion, reducing ghosting in dynamic graphical user interfaces or basic video playback. Its high brightness and contrast ratio (often 1000:1) contribute to legible and crisp text and graphics, a vital factor for long-duration monitoring or data entry tasks.
Conversely, its limitations are equally important. The viewing angles are constrained, with color shift and contrast loss becoming noticeable when viewed from above, below, or significantly from the sides. This makes it less ideal for collaborative settings or wide viewing arrangements. Furthermore, while it can display a broad range of colors, its color gamut typically covers a standard sRGB range, not the wider gamuts required for professional photo or video editing. These characteristics firmly position it as a panel optimized for cost-effective, direct-viewing scenarios rather than color-critical or multi-viewer environments.
Primary Applications and Industry Use Cases
The specific performance envelope of the M215HTN01.1 has led to its adoption in several key market segments. It is a prevalent choice for commercial and industrial monitors, where reliability, longevity, and cost-effectiveness are prioritized over premium visual fidelity. You will frequently find this panel in point-of-sale systems, kiosks, control room ancillary displays, and office workstations for general administrative duties.
Another significant application is in the medical field, particularly for non-diagnostic displays. It may be used for patient monitoring stations, nurse call systems, or administrative terminals within healthcare facilities, where clarity of data and 24/7 operational readiness are key. Its use also extends to gaming, but primarily in entry-level or budget-oriented monitors where its fast response time is a selling point, albeit with concessions on viewing angles and color vibrancy. Understanding these use cases helps in making informed sourcing decisions.
Integration and Compatibility Considerations
Successfully integrating the M215HTN01.1 into a device or using it as a replacement part requires careful attention to compatibility. The panel connects via a LVDS (Low-Voltage Differential Signaling) interface, a common standard in industrial and commercial displays. The specific pin configuration, bit lane (typically single or dual-channel), and power requirements must match those of the controller board or system it is being connected to.
Physical compatibility is equally critical. This includes:
Mounting Hole Patterns: Ensuring the screw holes align with the chassis or bezel.
Form Factor: Accounting for the exact dimensions, including thickness, to fit the enclosure.
Backlight System: The M215HTN01.1 uses an LED edge-lit backlight. Compatibility with the existing inverter or driver (if separate) or ensuring the new controller board can drive the LED strings is essential to avoid backlight failure.
Mismatches in any of these areas can lead to non-functional displays or physical installation issues.
